Fan vs Blower vs Compressor | What’s the Difference?

Fans, Blowers, and Compressors Whats the Difference? Industrial Guide to Choosing an Oil Free Air

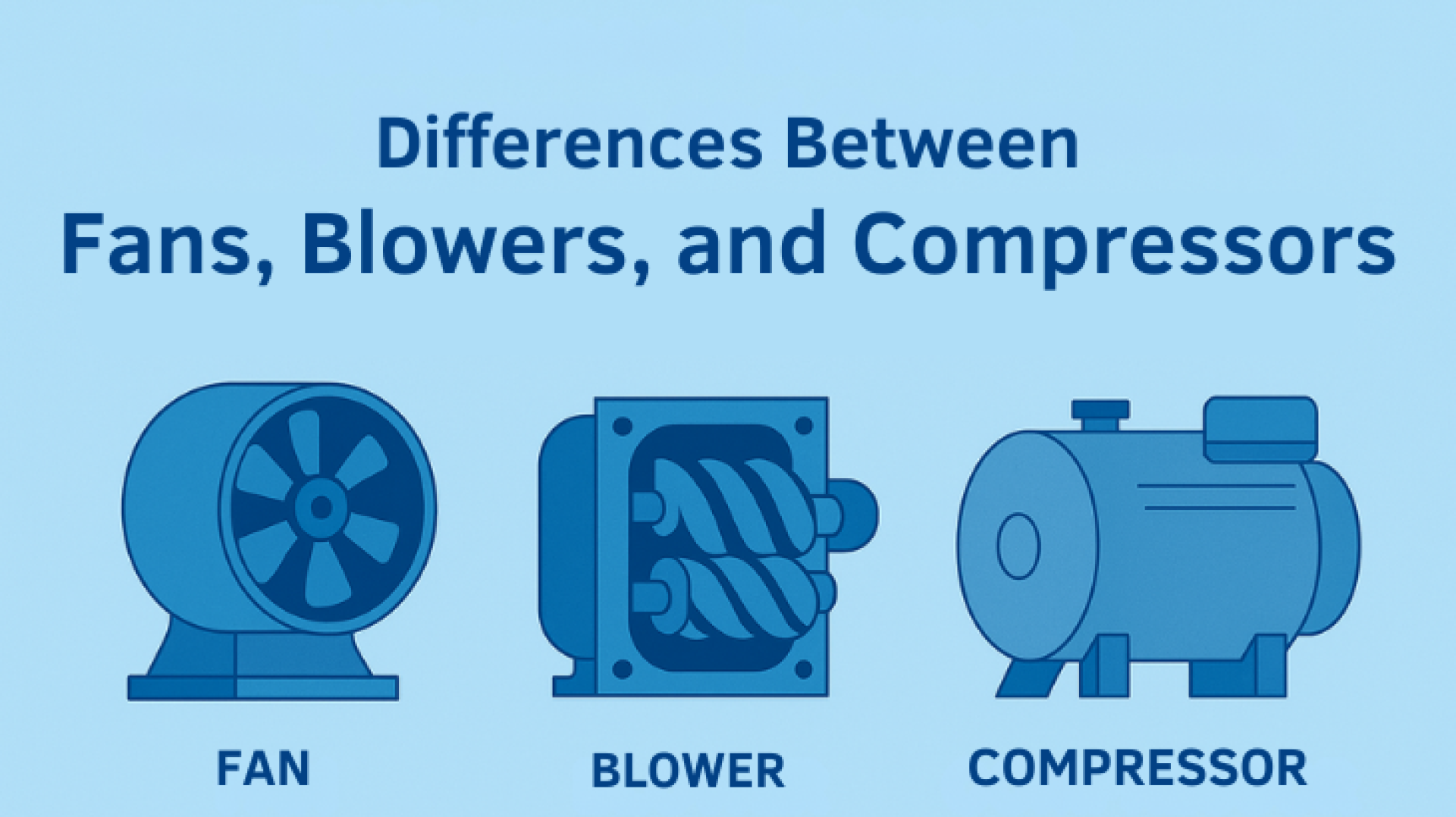

Industrial comparison image: fan, blower, compressor

For industrial plants, understanding the differences between a Fan, Blower, and Compressor is essential because it affects air quality, energy use, and production continuity. This is especially important for Oil Free Air applications that must meet ISO 8573-1 Class 0 a core requirement across food & beverage, pharmaceuticals, and electronics.

Engineering differences explained in plain English
Real Thai use cases and equipment selection guidance
Orientation on Oil Free Air Blower & Compressor rental options
Decision checklist

Call Now Free Consultation

Definitions & Principles

Fan

A Fan is a rotating machine that adds energy to air/gas at very low pressure rise (Pressure Rise < 10 kPa, Pressure Ratio 1.11). Fans move large volumes without high pressureideal for ventilation, heat exchange, and HVAC.

Blower

A Blower provides higher pressure than a fan but lower than a compressor, typically 10-200 kPa (Pressure Ratio ~1.11-1.2). It suits continuous process duties such as pneumatic conveying, aeration, vacuum assistance, and drying. Technologies include Roots Blower and Screw Blower, chosen by required flow/pressure and efficiency.
Screw Blower image

Compressor

A Compressor raises gas pressure above blower levels, generally >200 kPa (Pressure Ratio >1.2, up to 10+ in a single stage). It provides high, stable pressure and specific air quality for Process Air, Instrument Air, and Pneumatic Tools. In cleanliness-critical industries (food, beverage, pharma, electronics), choose Oil Free Air Compressor (ISO 8573-1 Class 0) to avoid contamination.

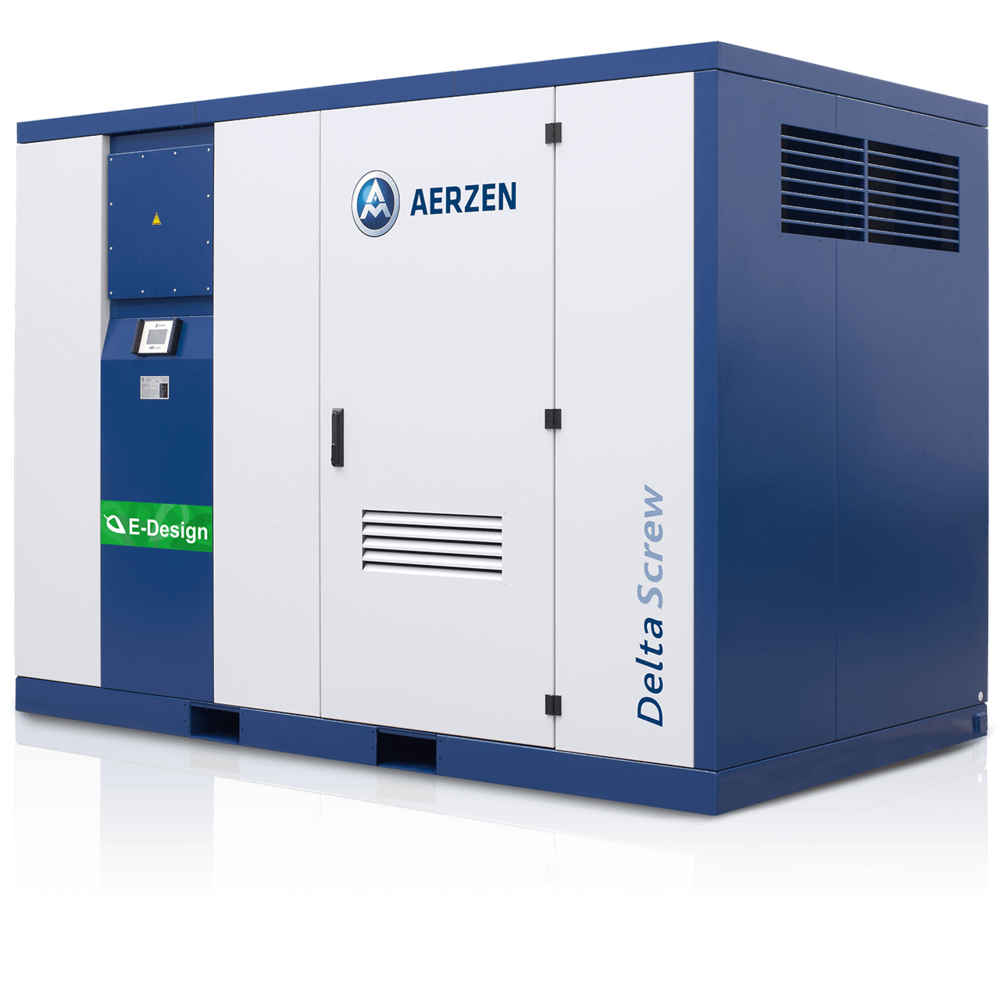

Oil Free screw compressor

Fan vs Blower vs Compressor: Core Differences

1. Pressure
Fan: low pressure for general ventilation
Blower: medium pressure for process (e.g., aeration, pneumatic conveying)
Compressor: high pressure for quality/stable compressed air
2. Stability & Control
Blowers and compressors deliver steadier pressure and tighter controlpreferred for process stability.
3. Air Quality
Where contamination risk exists (food, beverage, pharma, electronics), select Oil Free equipment to ISO 8573-1 Class 0.
4. Energy & Efficiency
Match technology to actual Flow and Pressure. Oversizing wastes energy and cost.
5. Maintenance & Availability
Industrial machines are built for continuous duty, but PM (preventive maintenance) extends life and reduces unplanned stops.
6. Application Fit
Fan: ventilation (low pressure)
Blower: medium-pressure process (aeration, conveying)
Compressor: high-pressure duties and specific air quality (process/instrument air)

How to Select for Industry

Start from the process requirement
Define how compressed air is used (ventilation, aeration, or as energy for tools). Confirm key figures: Flow Rate and Pressure Range. Consult experts to balance performance, energy, and maintenance.
Common use cases
General area ventilation Fan
WWTP aeration, drying, pneumatic conveying Blower (choose Screw or Roots based on flow/pressure window)
Pneumatic tools, instrumentation, high-pressure process Compressor (select Oil Free Air Compressor for strict quality; ISO 8573-1 Class 0)
Additional considerations
For plants needing production continuity or facing time/budget limits, short-term options like equipment rental can reduce risk during overhauls or upgrades without affecting base capacity.

Quick Answers

How do a fan and a blower differ?: A fan provides low pressure for general ventilation; a blower provides medium, steady pressure suited to process tasks like aeration or pneumatic conveying.
When should I choose a compressor?: When your process needs high pressure or specific air qualitye.g., Instrument Air, Process Air, or Oil Free applications.
How to achieve ISO 8573-1 Class 0?: Use Oil Free compressors or blowers with correct filtration/drying and verify air quality to the standard.
Why rent compressed air systems?: Faster deployment, lower CAPEX, access to latest technology, emergency coverage and overhaul support, with 24/7 local service.

Summary Specs

Depends on duty and model
Topic	Fan	Blower	Compressor
Pressure Ratio	up to 1.11	1.11 to 1.2	greater than 1.2
Example Uses	General ventilation, HVAC	Aeration, Pneumatic Conveying, Drying	Pneumatic Tools, Process Air, Instrument Air
Maintenance	Low	Medium	Per compressed air standards

Because performance requirements differ across Fans, Blowers, and Compressors, the impeller geometry is tailored to the target pressure rise and flow rate. This is why choosing a machine matched to the real duty matters. What about a Pump? A pump works on liquids, increasing liquid pressureunlike fan/blower/compressor, which work on gases/air and are classified by pressure ratio.

Compressed Air Selection Checklist

Define the process duty (ventilation, aeration, conveying, instrumentation, etc.).
Set required Flow, Pressure, Air Quality (e.g., ISO 8573-1 Class 0).
Review site constraints: footprint, installation point, noise, cooling, power.
Estimate energy and real operating profile (continuous/variable load).
Plan continuity: spares, service, and backup/rental options.
Test and verify air quality against product specs.
