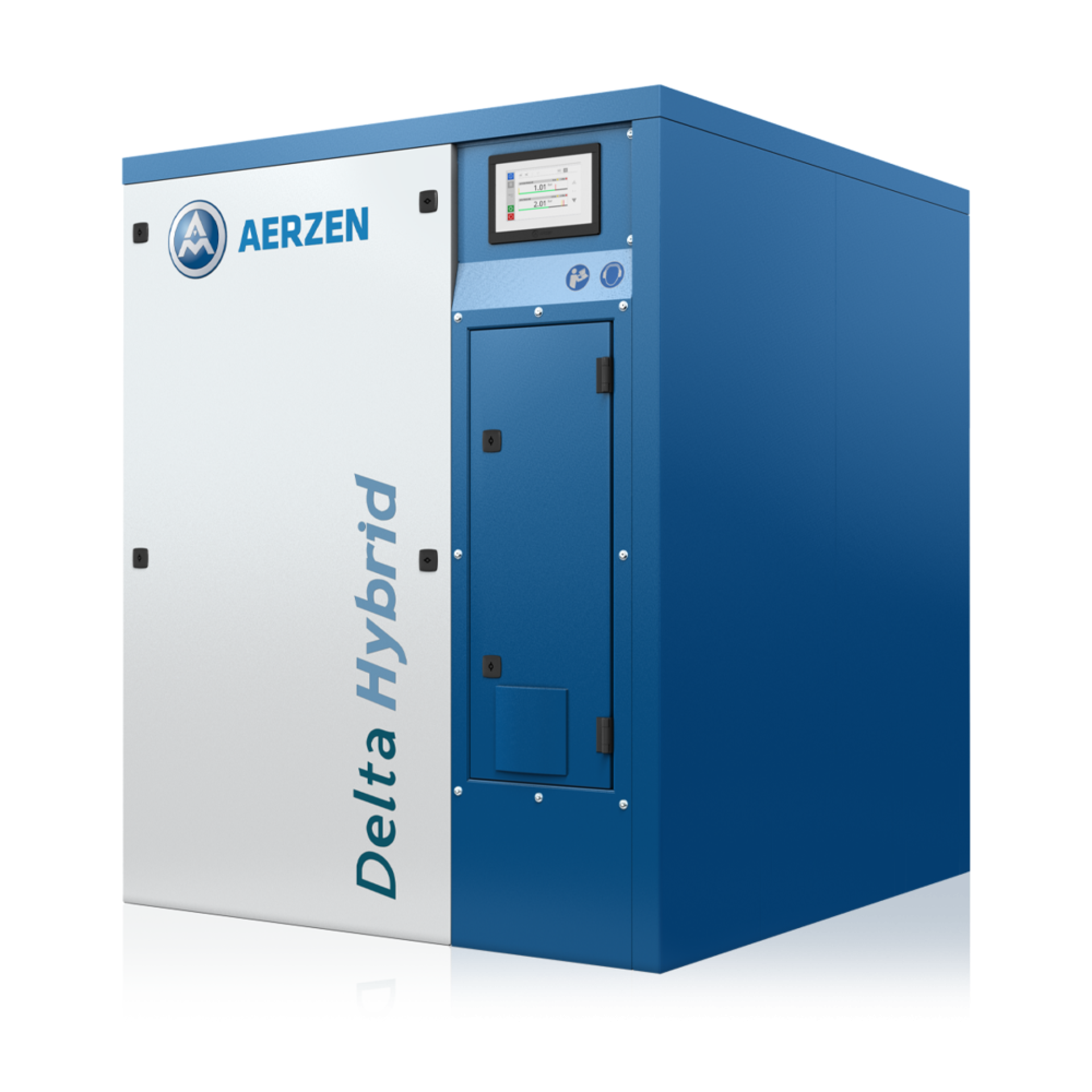

AERZEN Delta Hybrid Screw Blower: Maximum Energy Efficiency
AERZEN Delta Hybrid Screw Blower: Maximum Energy Efficiency
Welcome to Aerzen Thailand, your trusted partner for Oil Free Air Blowers and Oil Free Air Rentals. We are proud to present the AERZEN Delta Hybrid Screw Blower, an innovative fusion of positive displacement blowers and screw compressors. Its unique 3+4 compressor profile is designed for low-pressure applications up to 1,500 mbar, filling a crucial gap in compressed air technology.
Why Choose the Delta Hybrid Screw Blower?
- Energy Efficiency: Save up to 30% compared to traditional lobe blowers.
- Reduced Costs: Lower life cycle costs through decreased energy use and maintenance.
- Reliable Performance: Patented bearings with a lifespan exceeding 70,000 hours.
- Flexible Design: Handles volume flows from 100 to 9,000 m³/h with compact installation.
- Pure Air Delivery: Provides 100% oil-free air, ISO 8573-1 Class 0 certified.
Versatile Applications Across Industries
- Wastewater Treatment
- Drinking Water Purification
- Pneumatic Conveying
- River and Lake Aeration
- Chemical and Process Technology
- Food and Beverage Industry
- Glass and Paper Manufacturing
- Environmental Technology
Customized Solutions for Specialized Needs ️
We offer tailored designs to meet specific requirements, including:
- ATEX-compliant machines
- Specialized motors
- Advanced acoustic hoods
- Food-grade oils
- High-efficiency intake filters
Technical Specifications
| Specification | Details |
|---|---|
| Power Output | 15 kW |
| Volume Flow Rate | 100 to 9,000 m³/h |
| Pressure Range | Up to 1,500 mbar |
| Certification | ISO 8573-1 Class 0 |
| Noise Level | Low noise operation with acoustic hoods |
The advantages of AERZEN Screw Blowers at a glance:
- Highest energy efficiency
- Reduced life cycle costs
- Belt drive: the best mix for efficiency, precise design, flexibility and maintenance
- High reliability and durability also under extreme conditions
- Largest volume flow control range
- Reduced maintenance
- Class 0 ISO 8573-1 oil-free air
Applications
- Sewage treatment
- Drinking water purification
- Pneumatic conveyance of bulk materials
- River and lake aeration
- and many more
Industries
- Sewage treatment
- Chemical and process technology
- Glass and paper manufacturing
- Food industry
- Environmental technology
- and many more
Screw Blower
Delta Hybrid belt driven — Performances & dimensions
| Series | Performance data | Dimensions and weights | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Pressure difference, mbar | Volume flow*, m3/h | Motor power, kw | Sound pressure, max. db(A) | Width (A), mm | Depth (B), mm | Height (C), mm | Nominal size | Weight, kg | |
| D 12 H | 1,500 | 670 | 37 | 73 | 1,250 | 1,350 | 1,500 | DN 100 | 590 |
| D 12 S | 1,000 | 690 | 30 | 72 | 1,250 | 1,350 | 1,500 | DN 100 | 590 |
| D 13 S | 1,000 | 775 | 30 | 72 | 1,250 | 1,350 | 1,500 | DN 100 | 510 |
| D 17 S | 1,000 | 1,010 | 37 | 73 | 1,250 | 1,350 | 1,500 | DN 125 | 520 |
| D 24 H | 1,500 | 1,370 | 75 | 76 | 1,250 | 1,350 | 1,500 | DN 125 | 635 |
| D 24 S | 1,000 | 1,390 | 55 | 74 | 1,250 | 1,350 | 1,500 | DN 125 | 635 |
| D 25 S | 1,000 | 1,440 | 45 | 74 | 1,250 | 1,350 | 1,500 | DN 125 | 630 |
| D 30 S | 1,000 | 1,780 | 55 | 75 | 1,250 | 1,350 | 1,500 | DN150 | 640 |
| D 36 H | 1,500 | 1,900 | 110 | 76 | 1,500 | 1,800 | 1,980 | DN 150 | 1,098 |
| D 36 S | 1,000 | 2,150 | 75 | 76 | 1,500 | 1,800 | 1,980 | DN 150 | 1,098 |
| D 52 S | 1,000 | 3,120 | 110 | 77 | 1,500 | 1,800 | 1,980 | DN 150 | 1,305 |
| D 62 H | 1,500 | 3,400 | 160 | 81 | 1,700 | 2,055 | 2,111 | DN 200 | 1,400 |
| D 62 S | 1,000 | 3.500 | 110 | 79 | 1,700 | 2,055 | 2,111 | DN 200 | 1,400 |
| D 76 H | 1,500 | 4,440 | 160 | 79 | 1.700 | 2,055 | 2,111 | DN 200 | 1,998 |
| D 76 S | 1,000 | 4,550 | 160 | 77 | 1.700 | 2,055 | 2,111 | DN 200 | 1,000 |
| D 98 H | 1,500 | 5,600 | 250 | 81 | 1,900 | 2,200 | 2,345 | DN 250 | 3,300 |
| D 98 S | 1,000 | 5,800 | 200 | 79 | 1,900 | 2,200 | 2,345 | DN 250 | 3,300 |
| D 152 H | 1,500 | 8,700 | 400 | 81 | 2,100 | 2,850 | 2,345 | DN 300 | 4,050 |
| D 152 S | 1,000 | 8,900 | 315 | 80 | 2,100 | 2,850 | 2,345 | DN 300 | 4,050 |
Sound pressure level without blow-off noise, with acoustic enclosure.
* corresponds to the measured delivery volume flow converted to the customer-specific suction conditions p = 1,0 bar, t =20°C, rF = 0%f
Frequently Asked Questions
What is an Oil Free Air Blower?
An oil-free air blower is a device that delivers compressed air without the use of oil in the compression chamber, ensuring 100% oil-free air suitable for sensitive applications.
Why Choose Oil Free Air Rental?
Renting oil-free air equipment provides flexibility, reduces capital expenditure, and ensures you have the right technology for short-term or urgent needs.
What Industries Benefit from Industrial Blower Rental?
Industries such as wastewater treatment, food and beverage, chemical processing, and environmental technology benefit from industrial blower rentals for their operational needs.
What is ISO 8573-1 Class 0 Certification?
It's the highest air purity class, indicating that the compressed air is 100% oil-free, crucial for industries where air quality is paramount.
How Can I Rent a Compressor from Aerzen Thailand?
You can contact us via phone at +66 (0)98 323 2626 or email at thai@aerzenrental.com to discuss your requirements.
Experience Enhanced Efficiency with AERZEN
Experience enhanced efficiency and performance with the AERZEN Delta Hybrid Screw Blower. Whether you need Industrial Blower Rentals or permanent installations, we have solutions to optimize your compressed air applications.
New Solutions: AERZEN Rental for Short-Term and Urgent Needs
We understand that operational demands can change rapidly. That's why we offer flexible rental options for Compressor Rentals to meet your short-term and urgent needs.
Contact Us Today!
Our team at Aerzen Rental Thailand is ready to assist you. Get in touch with us to find the best solutions for your industrial air requirements.
Phone: +66 (0)98 323 2626
Email: thai@aerzenrental.com
